Get Data Permissions From Vehicle Owners

DIMO Connect is a user interface built on our robust privacy engine that allows app developers to specify and request data from vehicle owners. Developers can get started using either the React Component SDK (aka Login with DIMO) or by simply creating a DIMO Connect URL.

How It Works

1

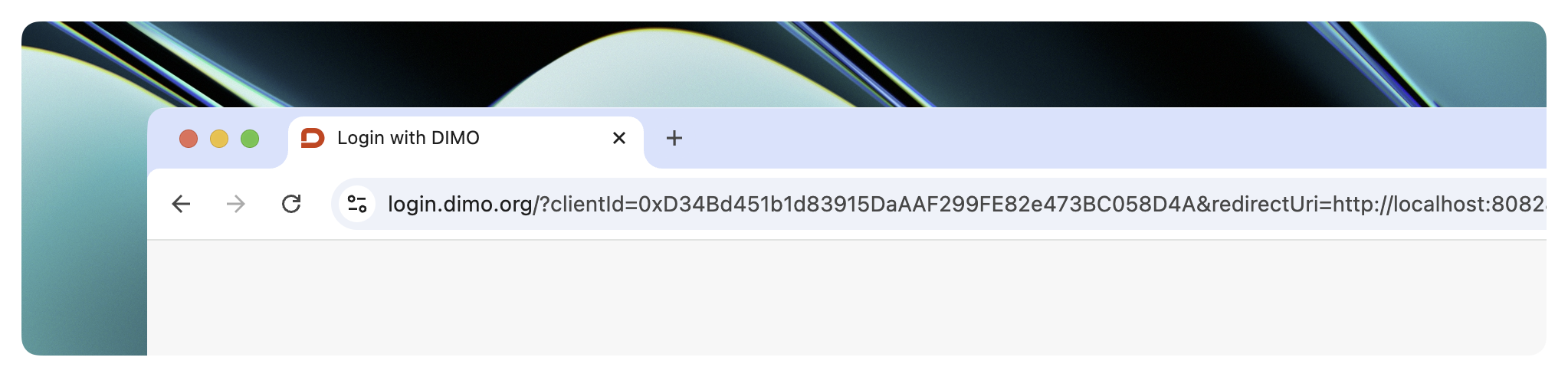

Configure Your URL

Using the Client ID and Redirect URI from your Developer License, configure your DIMO Connect URL along with the specific vehicle data you want to request from your users.

Try it out

URL Method

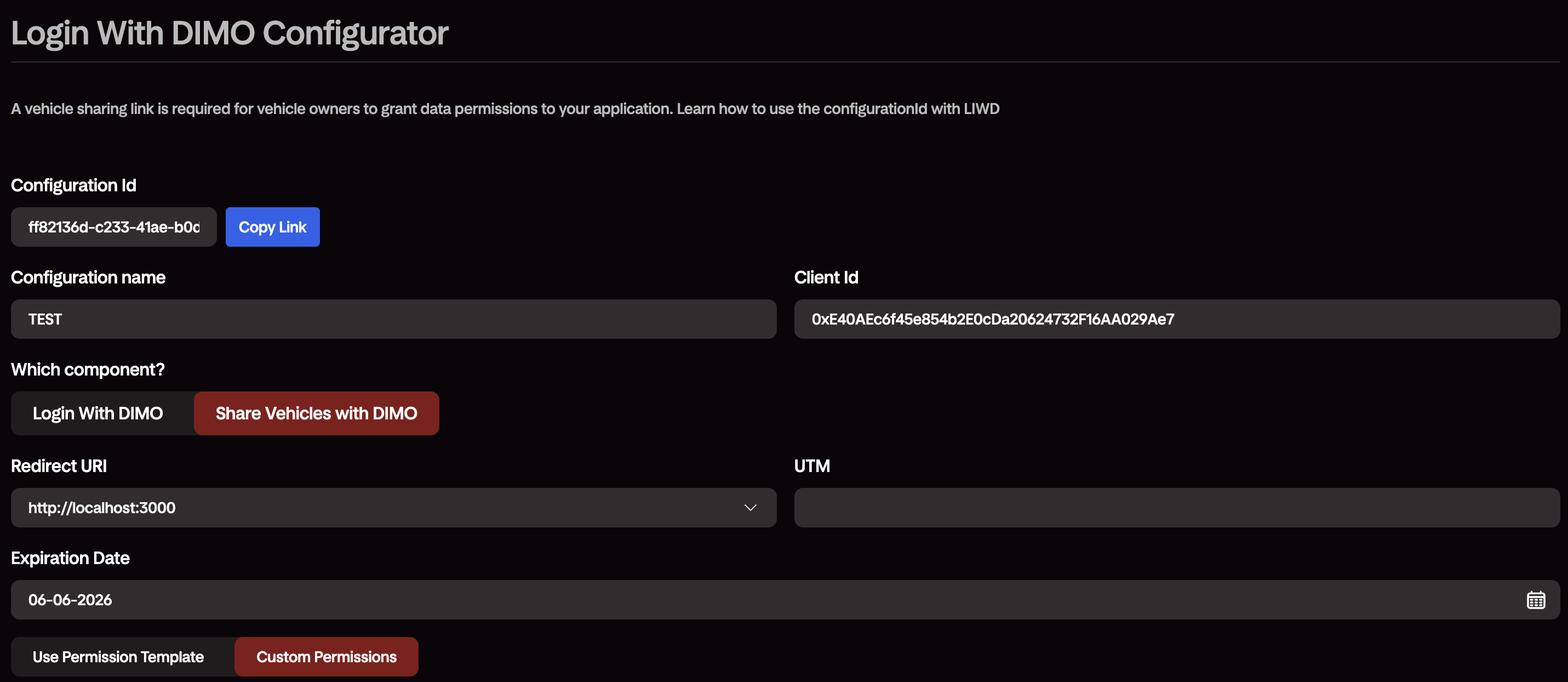

DIMO Connect URL Builder

Configure your DIMO Connect URL by filling out the fields below. The URL will be generated in real-time below.

Client ID *

Redirect URI *

Expiration Date (optional)

If not set, permissions will expire in 100 years (default)

Vehicle Data Permissions (optional)

1

All-time, non-location data

Historical vehicle data excluding location information

2

Commands

Send commands to the vehicle (lock, unlock, start, etc.)

3

Current location

Real-time location data

4

All-time location

Historical location data

5

View VIN credentials

Access to vehicle identification number

6

Live data streams

Real-time telemetry data streaming

7

Raw data

Unprocessed vehicle data

8

Approximate location

General location area (not precise coordinates)

SDK Method

import {
  LoginWithDimo,
  ShareVehiclesWithDimo,
  ExecuteAdvancedTransactionWithDimo,
  initializeDimoSDK,
  useDimoAuthState,
} from "@dimo-network/login-with-dimo";

const { isAuthenticated, getValidJWT, email, walletAddress, getEmail } =
useDimoAuthState();

useEffect(()=>{ if ( isAuthenticated ) {
//makeAuthenticatedRequest(getValidJWT()) console.log(email);
console.log(walletAddress); } },[isAuthenticated])

initializeDimoSDK({ clientId: process.env.REACT_APP_DIMO_CLIENT_ID!,
redirectUri: process.env.REACT_APP_DIMO_REDIRECT_URI!, });

...

{isAuthenticated ? (

<ShareVehiclesWithDimo
mode="popup"
onSuccess={authData => console.log('Success:', authData)}
onError={error => console.error('Error:', error)}
permissionTemplateId={'1'}
// expirationDate={} // Optional ISO string
/>

<ExecuteAdvancedTransactionWithDimo
  mode="popup"
  onSuccess={(transactionData: any) =>
    console.log("Transaction Hash:", transactionData.transactionHash)
  }
  onError={(error: any) => console.error("Error:", error)}
  address="0x21cFE003997fB7c2B3cfe5cf71e7833B7B2eCe10"
  value="0"
  abi={sampleAbi}
  functionName="transfer"
  args={["0x62b98e019e0d3e4A1Ad8C786202e09017Bd995e1", "0"]}
/>
) : (
<LoginWithDimo
  mode="popup"
  onSuccess={(authData) => console.log("Success:", authData)}
  onError={(error) => console.error("Error:", error)}
  permissionTemplateId={permissionsEnabled ? "1" : undefined}
  // expirationDate={} // Optional ISO string
  // vehicles={["585","586"]}
/>
)}

2

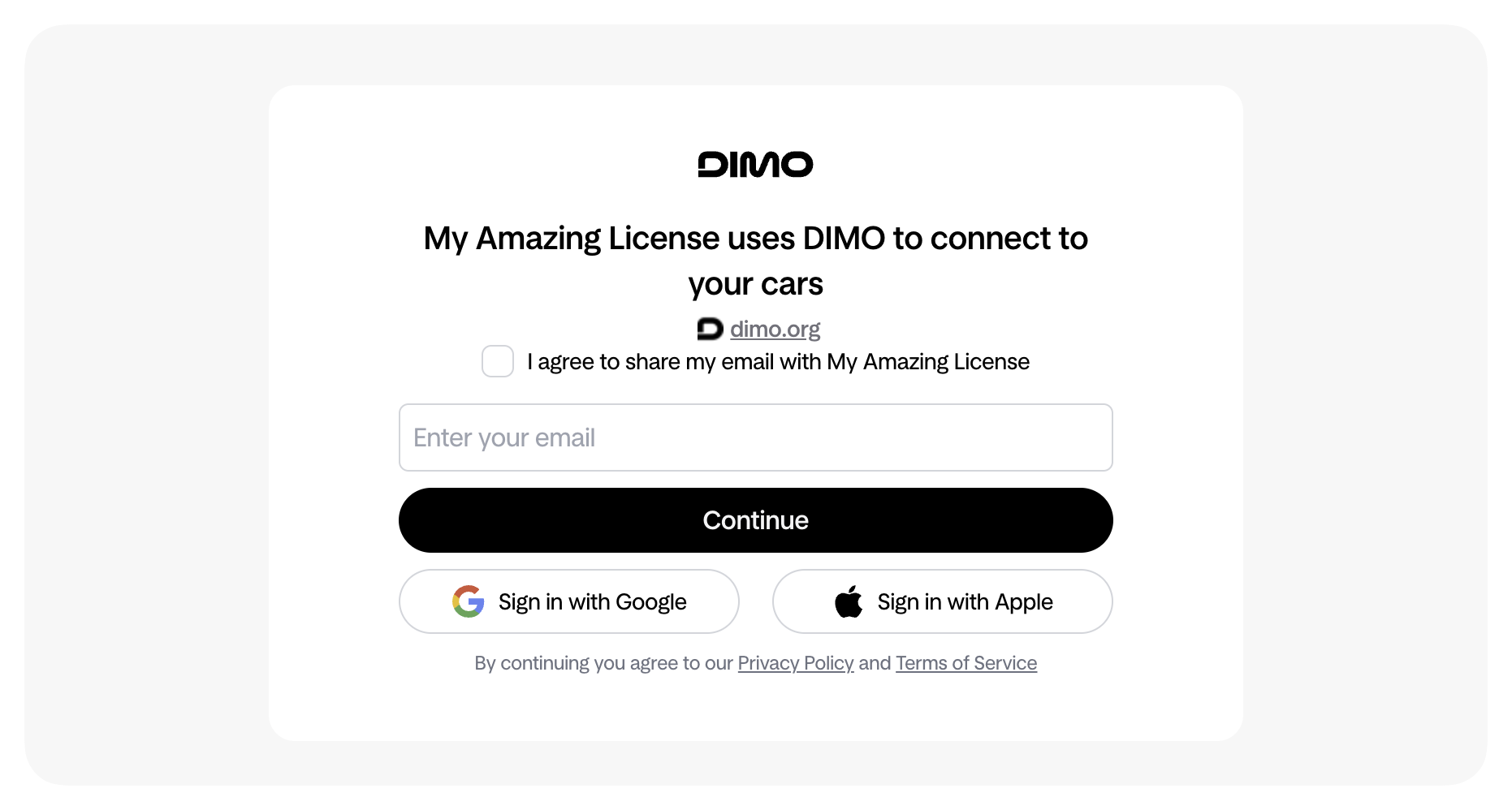

Share with Users

Users using your DIMO Connect URL can grant you permissions to begin accessing their vehicle data.

3

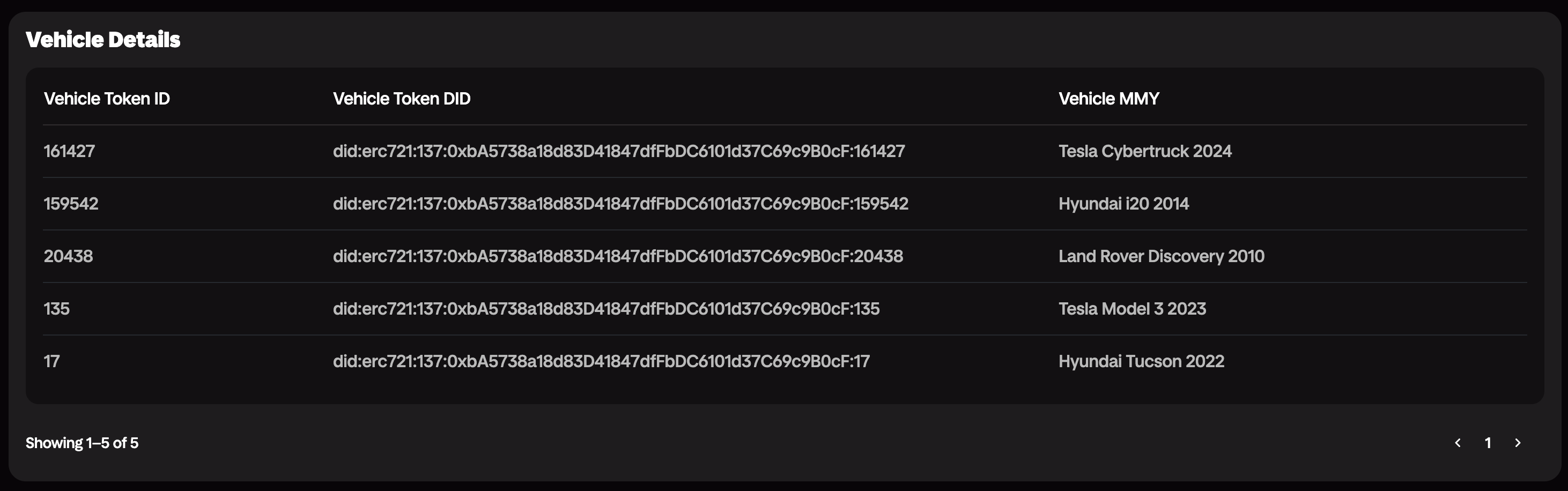

Check Vehicle Status

Use the DIMO Developer Console or the Identity API to track which vehicles have shared permissions with you.

Try it out

Identity API

GraphQL QUERY

GraphQL Endpoint

GraphQL Queryquery GetVehicleByDevLicense($clientId: Address!) { vehicles(filterBy: { privileged: $clientId } first: 3 ) { nodes { owner tokenId definition { make model year } } totalCount pageInfo { startCursor hasPreviousPage hasNextPage } } }

GraphQL Variables

$clientId: Address! *Client ID of your Developer License

4

Get Vehicle JWT

Try it out

Exchange Developer JWT for a Vehicle JWT

POST

JWT Token

API Endpoint

Request Parameters

Vehicle Token ID

Permissions RequestedAll-time, non-location dataCommandsCurrent locationAll-time locationView VIN credentialsLive data streamsRaw dataApproximate location

Select one or more by clicking while holding down Command (⌘ on a Mac) or Ctrl (PC)

Request Body

{
  "nftContractAddress": "0xbA5738a18d83D41847dfFbDC6101d37C69c9B0cF"
}

5

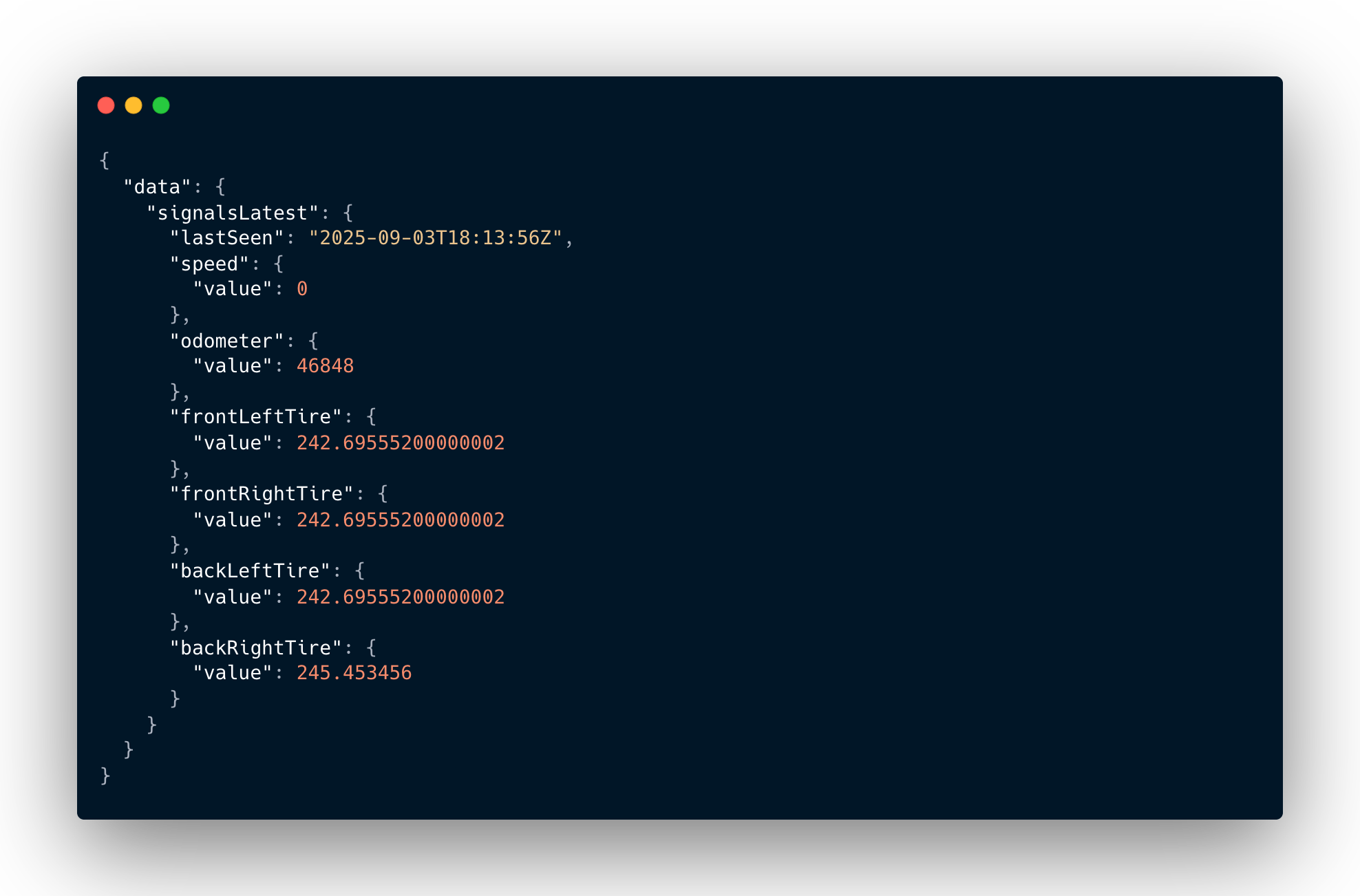

Start Getting Data

Begin polling the DIMO APIs or setting up DIMO Webhooks using one of the available Data SDKs.

Try it out

Telemetry API

GraphQL QUERY

JWT Token

GraphQL Endpoint

GraphQL Queryquery GetAvailable($tokenId: Int!) { availableSignals(tokenId: $tokenId) }

GraphQL Variables

$tokenId: Int! *Vehicle Token ID of a shared vehicle

Using the SDK

If you are a React developer, you are more than welcome to use the SDK directly and skip using the DIMO Connect URL. The SDK is guaranteed to have more functionalities as the DIMO Connect URL is bounded by query parameter limitations.

Client SDK: DIMO Connect

Full Feature List

	React SDK	Connect URL	Details
Account Creation/Login	✅	✅	Login with DIMO allow developers to onboard users to DIMO, enabling logins across all DIMO platforms with the use of a passkey or email OTP.
Permissions	✅	✅	This is an optional entry state where users are asked to share their vehicles with your application, login is required before entering the vehicle permissions state.
Entry States	✅	✅	Multiple entry states to customize user flow
Campaign Tracking	✅	✅	UTM parameter allows you to drive campaigns with channel partners of yours, maximizing the potential of your application.
Advanced Filtering	✅	✅	Ensure that vehicles are compatible with your app by applying filters on vehicle token IDs, vehicle brand, and/or powertrain types.
Custom Button	ℹ️	✅	Customize button style and text to fit your design needs
Custom Expiration Dates	✅	✅	Customize expiration dates for your user data permissions.
Popup Mode	✅	❌	Web popup mode
Advanced Transactions	✅	❌	Execute specific blockchain transactions
Customized Messaging	✅	❌	Customize text fields with your brand messaging to better cater to your audiences.
Callbacks (onSuccess/onError)	✅	❌	Customizable actions on callbacks, ensuring a full e2e experience for your beloved users.
Vehicle Onboarding (beta)	✅	✅	Onboarding new vehicles onto the DIMO Network, supports Tesla only.
